Square D General Duty Safety Switch D323N / 100 AMP Fused Knife Switch – Used

$125.00 $75.00

Square D General Duty Safety Switch D323N / 100 AMP Fused Knife Switch

1 in stock

SKU: ws-0312161140 Category: Tags: , , , ,

Description

We have available several of these nice used Square D General Duty Safety Switch Enclosures complete with fuses. We acquired these boxes due to a factory closing. We have several of these available. Since we are not the original Owner we are selling this As-Is.

* SQUARE D

* D323N

* General Duty Safety Switch

* 100 AMP Fused Knife Switch

* 3 PH / 240 VAC/V-

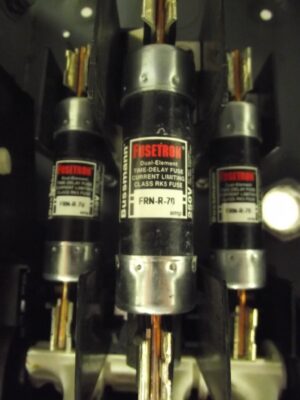

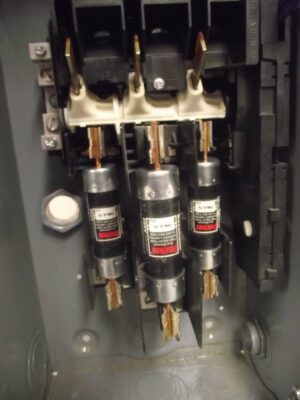

* Includes 3 – 70 AMP Fuses

* Box Size: 18”x8-1/2”x5”

* Overall Size: 18”x10”x8”

* Good Used Condition

* 12 Available



SHIPPING SPECS

* Ships Standard UPS

* Shipping Size: 12”x20”x10”

* Shipping Weight: 18 Lbs



Factory specs:

Square D D323N General Duty Safety Switch

General Duty Safety Switch F Series, type d, disconnect switches, general duty safety disconnect switches, 3 phase, 3 pole, 3 wire, 240V, 100A, 100kA@240V, nema 1, fusible type, accepts class R fuses, single style, suitable for indoor use, disconnect safety switches.

Specifications :
• Manufacturer : Square D / Schneider Electric
• Cat. No. : D323N
• Alternate Part No. : D-323N
• Product Type : Safety Switch
• Terminal Type : Lugs
• Type of Duty : General Duty
• Maximum Voltage Rating : 240VAC
• Wire Size : #12 to #1/0 AWG(Al) – #14 to #1/0 AWG(Cu)
• Depth : 6.50 Inches
• Height :17.50 Inches
• Width : 8.50 Inches
• No. Of Phase : 1-Phase
• Action :Single Throw
• Ampere Rating : 100A
• Approvals : UL Listed
• Enclosure Rating : NEMA 1
• Enclosure Type : General Purpose (Indoor)
• Factory Installed Neutral : Yes
• Fuse Type : Cartridge (Class H, K or R)
• Disconnect Type : Fusible
• Short Circuit Current Rating : 100kA (max. depending on fuse type)
• Mounting Type : Surface
• Number of Poles : 3-Pole
• Authentic Square D / Schneider Electric Product
